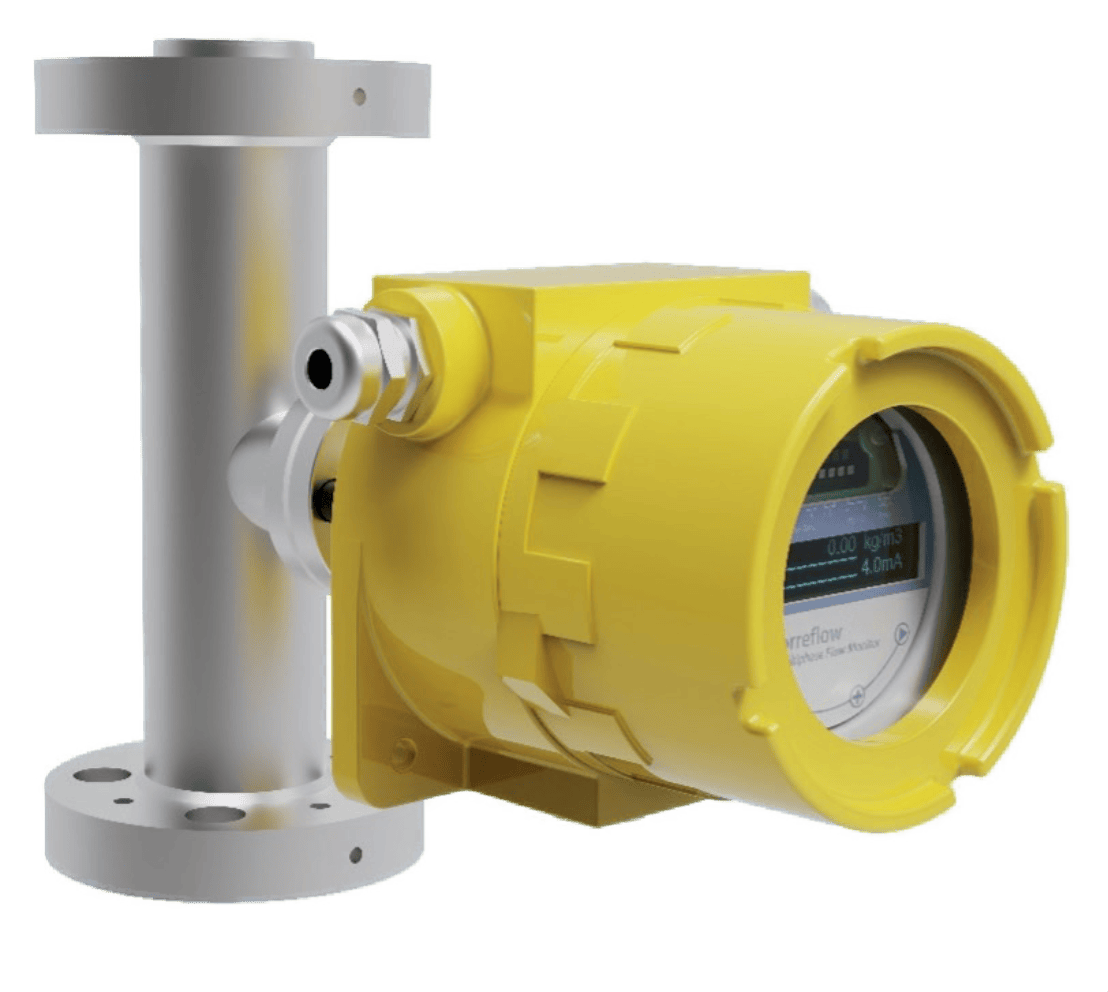

Correflow® 6400

Product Description

Fully quantitative, inline measurement of mass-flow rate, particle velocity, and suspended density by combining cross-correlation time-of-flight (velocity) with capacitance-tomography (density) principles. Tracks real-time catalyst usage for feed-tank monitoring and rapid troubleshooting of feeding issues.

  • No pressure drop or flow impact to catalyst feed stream
  • Designed for continuous, real-time flow monitoring in demanding process environments.
  • Immediate detection of catalyst feeder clogging or leaking
  • OLED display reports measurements locally
  • 4 x user selectable 4–20 mA outputs
  • On-screen menu to configure parameters and select outputs
  • ATEX/IECEx (Ex db IIC T4 Gb, Ex tb IIIC T80C Db)
  • UL Class I, Division 2 Groups A, B, C, and D
  • IP66 rating
  • Pressure tested to 10 Mpa
  • Ambient Temperature Range: -40°C to 80°C
  • Process pressures up to 10 Mpa
  • Explosionproof enclosure is 14.2cm (5.6“) in diameter, 14.5cm (5.7“) long
  • Process connections:
    • In-line flange: 3/4″ or 1″ 300#
    • Swagelok fitting: 1/8” tubing
  • 24V DC (<15W)
