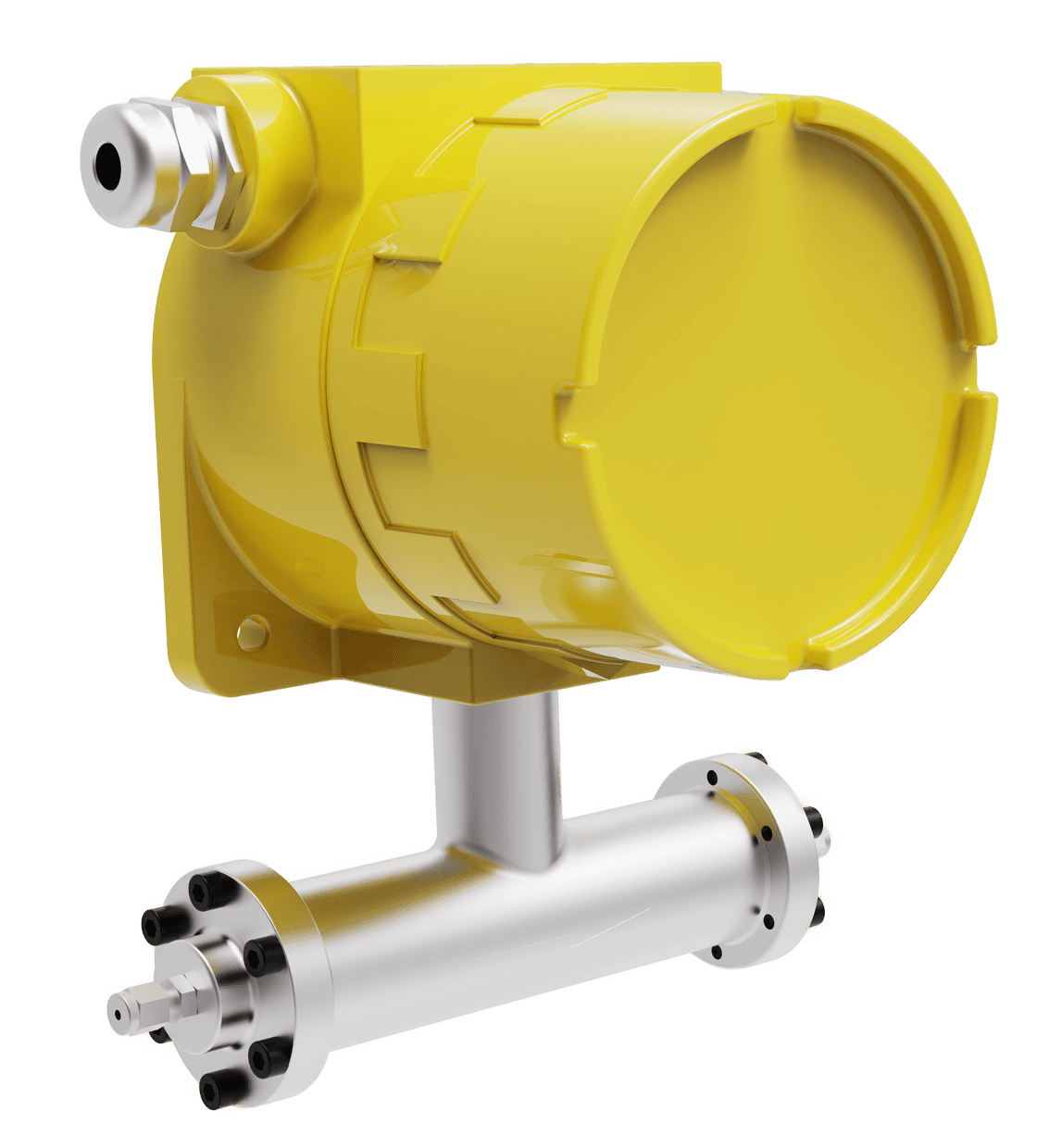

Correflow® 6200

Product Description

Two-phase monitor for gas and slurry streams, designed to measure suspended density (volume fraction) in real time. Based on capacitance tomography principles, it characterizes both pulsed and continuous feeding systems, giving operators deeper insight into flow dynamics and enabling early upset detection.

  • Designed for continuous, real-time flow monitoring in demanding process environments.
  • OLED display reports measurements locally
  • 4 x user selectable 4–20 mA outputs
  • On-screen menu to configure parameters and select outputs
  • IP66 rating
  • Pressure tested to 10 Mpa
  • Ambient Temperature Range: -40°C to 80°C
  • Process pressures up to 10 Mpa
  • Explosionproof enclosure is 14.2cm (5.6“) in diameter, 14.5cm (5.7“) long
  • Process connections:
    • In-line flange: 3/4″ or 1″ 300#
    • Swagelok fitting: 1/8” tubing
  • 24V DC (<15W)
